Pulse Magnetiser

Ferronato M2T-1

  • Generates pulses to 2 Tesla.

  • Well suited for IRM (Isothermal Remanent Magnetisation) studies on rock samples, in Paleomagnetism laboratories.

  • Useful also in many applications in where a brief but strong magnetic field is needed.

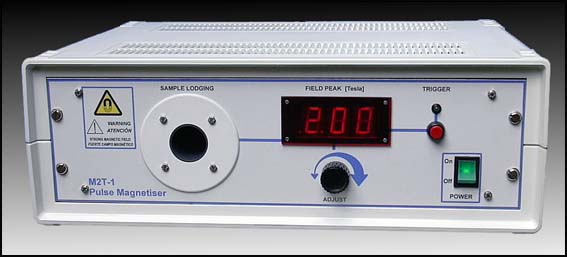

Ferronato M2T-1 Magnetiser

Specifications

Pulse amplitude: Adjustable, from 0.02 T to 2.00 T.
Pulse width: 4.5 ms ± 5 % at its base (larger width); 2.8 ms ± 5 % at half amplitude.
Reading precision: Error of less than ± 5 % + less significant digit, for pulse amplitude.
Pulse repetitibility: Better than ± 1 %, in pulse to pulse amplitude.
Display type: Digital, 3 digits of 25.4 mm, 7 Red LED segments.
Display ranges: Two, automatic, in Tesla. Resolution (1) = 0.001 T from 0.02 to about 0.15 T. Resolution (2) = 0.01 T from 0.15 T to 2.00T.
Sample lodging capacity: It is 36 mm in diameter. Admits standard rock samples (Diam. 25 x 22 mm cylinder) or smaller.
Field homogeneity: Better than ± 1 % for a volume equivalent to a Diam. 25 x 22 mm standard sample.
Pulse to pulse time: It is "Ready" in less than 15 seconds in between 2.00 T pulses. Less time for lower fields.
Power voltage: 230 V ac ± 5 %.
Consumed power: 145 VA, maximum. 100 VA while not triggered.
Enclosure: Aluminium module for 19" rack (3U), mounted in a strong ABS plastic box.
Dimensions: Width 528, length 430, height 187 mm, maximum.
Weight: 14 kg.
Warranty: Two years.
Includes a sample holder for Diam. 25 x 22 mm standard samples, on any of its three axes. It is suitable also for smaller samples.

These specifications are subject to change without prior notice.
