ECG Simulator

- Versión en Español (clic aquí)

Ferronato® - FC3D

. . . Well suited for testing ECG monitors, Holter recorders, electrocardiographs, QRS synchronised or triggered devices, etc. Digitally generated waveform, with high amplitude and rate stability.

-- Realistic signals (Leads)

-- Microcontroller based

-- Realistic output impedances

-- Long battery life (>300 h)

-- Easy connection: Banana and Snap-On

-- "Low Battery" indicator

-- Membrane push-buttons

-- Small, sturdy and lightweight

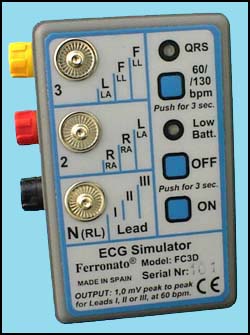

60 and 130 bpm ECG waveforms ECG Simulator FC3D photo

NEW! Improved terminal connectors, as in the photo, since September 2013.

SPECIFICATIONS

Waveform: "Normal PQRST" wave (see above figure). The signal could be Lead I, II or III, according to terminals connection.
Signal amplitude: Fixed, 1.0 mV peak to peak, ± 5 %.
Rate: Two selectable values: 60 and 130 bpm, ± 0.2 % (bpm = "Beats per Minute").
Complex width: 600 ms at 60 bpm and 435ms at 130 bpm.
Output impedance: Maximum 4000 Ohms between any terminal.
Signal Offset: Maximum 0.2 mV, for isoelectric line.
Connection: Three outputs with two types of connectors: 4 mm female Banana and Snap-On stud, with 20 mm spacing. IEC colour code (or "European") for Lead I.
Light indicators: Green LED flashing on each QRS. Red LED flashing on "Low Battery".
Power supply: 9 V battery, type PP3 or 6LR61. Inverted polarity protected.
Consumption: 0.310 mA (integrated), at 60 bpm.
Operating temp: From -10º C to +50º C.
Size: Maximum dimensions: 90 x 62 x 27 mm.
Weight: 66 grams without battery. Approximately 110 grams with battery.
Accessories: Includes User's Manual, carrying bag and battery.
Warranty: Two years.

These specifications are subject to change without prior notice.
